01Project specifications
Precision. Purpose.Possibility.

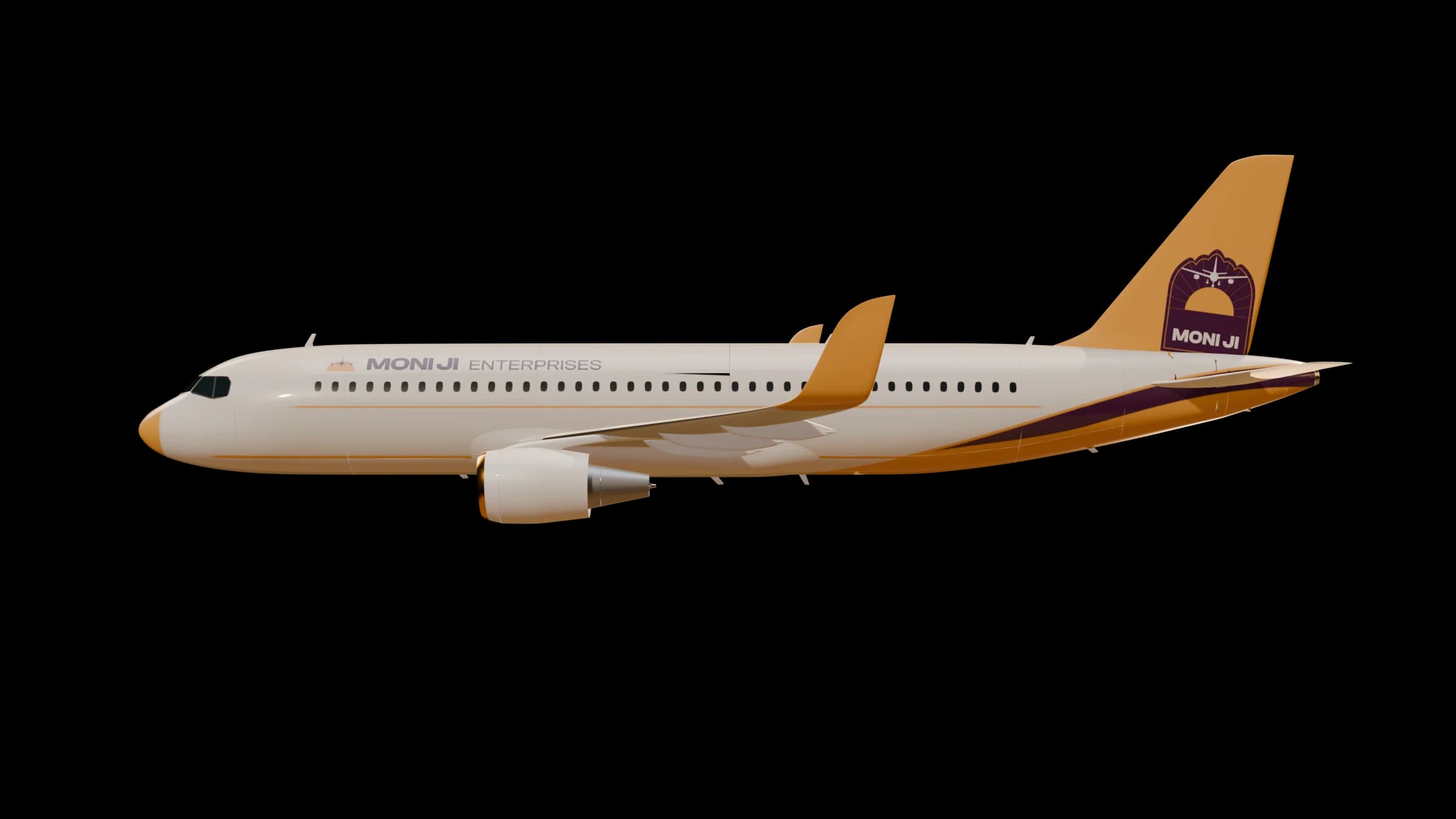

The AIRBUS A320 is a narrow-body, twin-engine jet airliner known for its reliability, efficiency, and versatility.
- Length
- 123 ft 3 in
- Wingspan
- 111 ft 11 in
Area required
1600
sq yards · approx. · ≈ 1,338 m² · Airbus A319 / A320 / A321
The fleet on the sheet
- A319 Neo≈ 1,600 sq yd site
- A320≈ 1,600 sq yd site
- A321≈ 1,600 sq yd site
- DC-3 Dakota≈ 700 sq yd site
- Railway coach≈ 900 sq yd site
- Bell 407≈ 150 sq yd site
SPECSpecification sheet · Rev 2026.09
The fleet, to the millimetre.
Airbus
Airbus A320
- Length
- 37.57 m
- Wingspan
- 34.1 m
- Height
- 11.76 m
- Fuselage width
- 3.95 m
| Overall length | 37.57 m123 ft in the brochure |
|---|---|
| Wingspan | 34.1 m111 ft in the brochure · 35.80 m with sharklets |
| Height | 11.76 m |
| Cabin length | 27.51 m |
| Fuselage width | 3.95 m |
| Max cabin width | 3.7 m |
| Cabin height | ≈ 2.24 m |
| Main door (H × W) | 1.85 × 0.81 m |
| Track | 7.59 m |
| Wing area | 122.6 m² |
| Mmo | M 0.82 |
| Engines | CFM56-5B / IAE V2500 |
| Wheelbase | 12.64 m |
| Seats | 140-170 typical · 180 max |
| Operating empty weight | ≈ 42.6 t |
| Max take-off weight | 78 t |
| Max fuel | 27,200 L |
| Range | 6,200 km |
| A320 Neo | Seats 194 max · MTOW 79 t · Range 6,300 km |
Typical published values for the type; verify against the specific airframe.
Site requirement · Airbus A320
1,600
sq yards · approx. · ≈ 1,338 m² · ≈ 0.33 acre
A total area of approx. 1600 sq yards is required to accommodate the transformation of the aircraft and the associated infrastructure.
Plot shape may vary; the area is indicative and the final layout is prepared per site.
Plot · 38.6 m × 34.66 m
- Site required
- ≈ 1,600 sq yd
- Aircraft footprint
- 37.57 m × 34.1 m
- The margin buys
- Stairs and decking, the kitchen block, services and landscaping around the aircraft.
10 m
